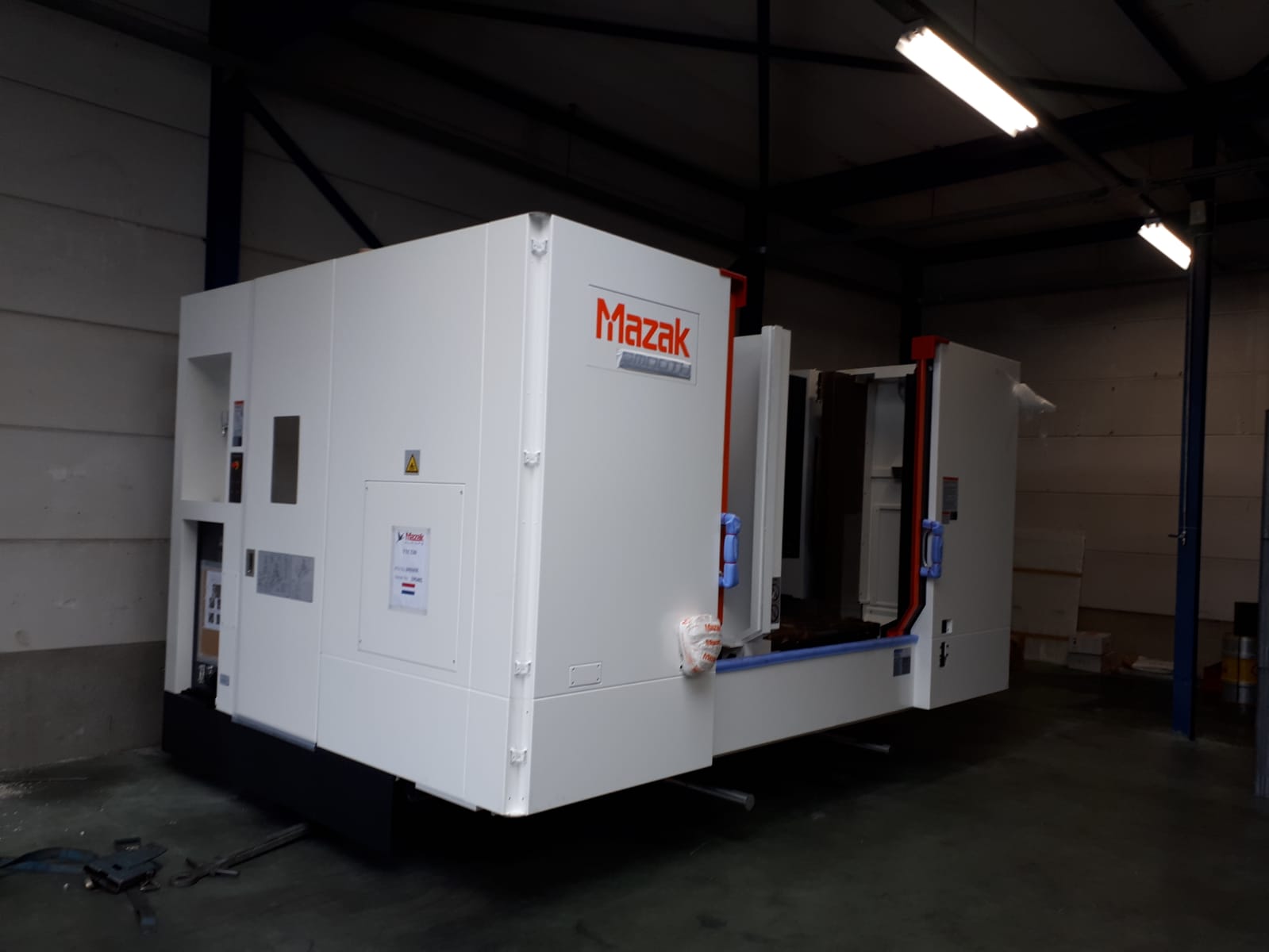

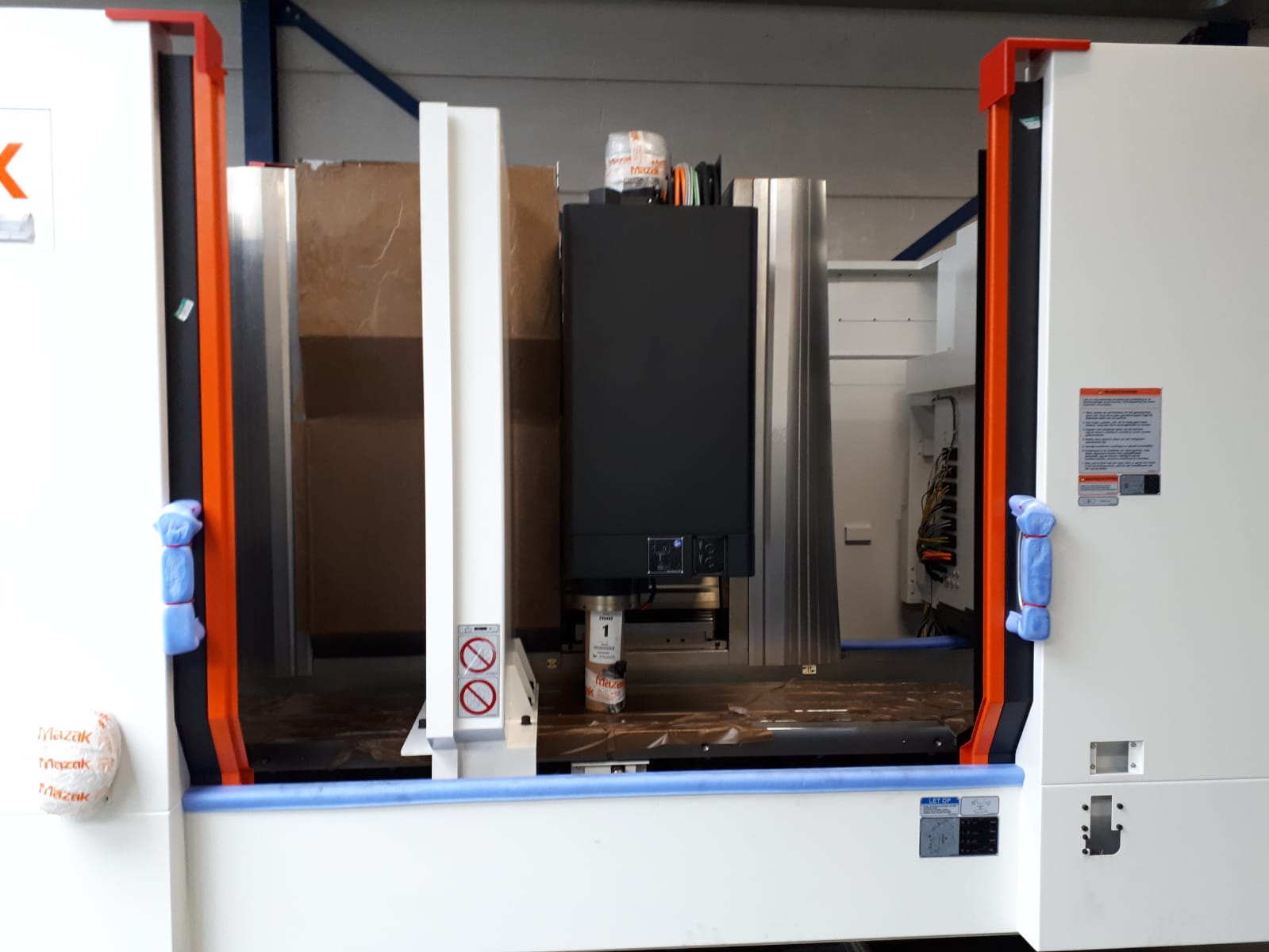

neue VTC 530

Machine Specifications



Standard Machine Values
CAPACITY Table centre height 750 mm
Table working surface (Length) 2,300 mm
Table working surface (Width) 530 mm
Saddle (longitudinal) X-axis 1,740 mm
Column (cross) Y-axis 530 mm
Spindle head (vertical travel) Z-axis 510 mm
SPINDLE HEAD Spindle speed maximum (standard) 12,000 min-¹
FEED RATES Rapid traverse (X-axis) 42 m/min
Rapid traverse (Y-axis) 42 m/min
Rapid traverse (Z-axis) 42 m/min
TABLE Table length dimension 2,300 mm
Table width dimension 530 mm
AUTOMATIC TOOL CHANGER Tool storage capacity (standard) 30
Tool shank MAS BT40 / CAT40
MACHINE DIMENSIONS Machine width 4,225 mm
Machine depth 3,510 mm
